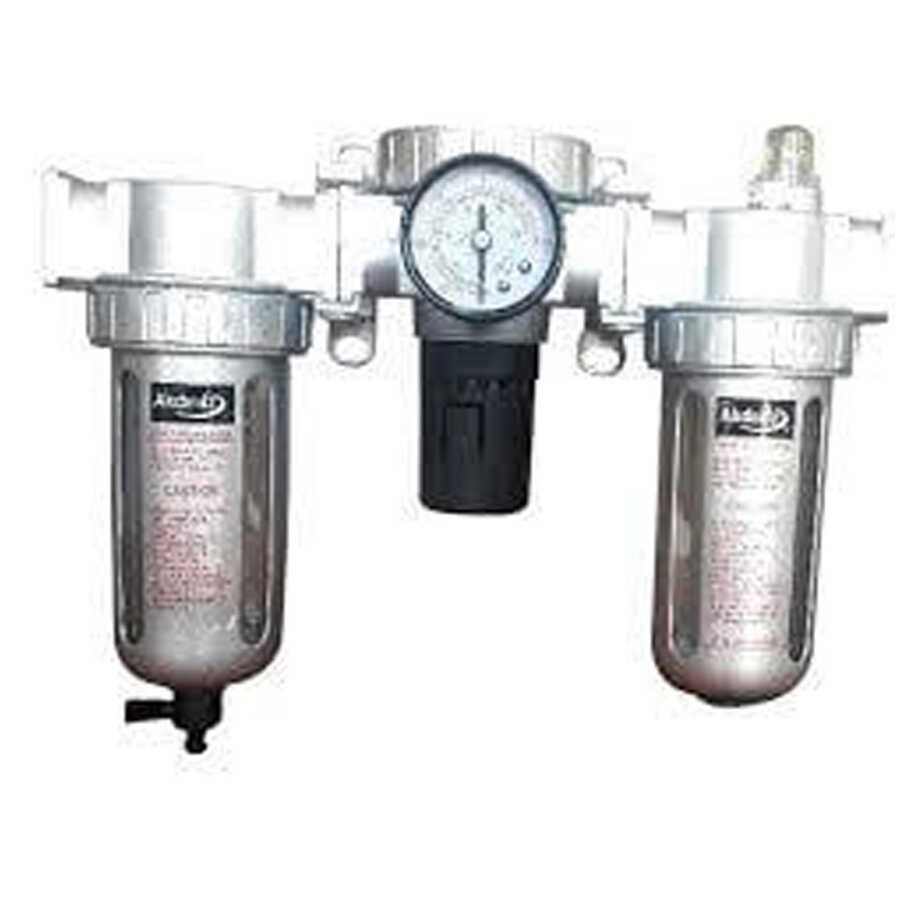

Akdeniz FRL C804 Air Filter Regulator Lubricator Triple Set 1/2"
Super Fast Shipping Out Of Stock
Notify me when its in stockAkdeniz Conditioner FRL C804 Triple Set 1/2
The Akdeniz Conditioner FRL C804 Triple Set 1/2 is a pneumatic preparation unit designed to optimize air quality in compressed air systems. This triple set combines air filter, pressure regulator, and lubricator functions into a single compact unit. With its 1/2-inch zinc-type port size, it offers a suitable solution for various industrial applications. It supports a maximum inlet pressure of 215 psi and an adjustable outlet pressure of 7-150 psi.
Key Features
- Combines filtration, regulation, and lubrication functions in compressed air systems.
- Provides wide compatibility with its 1/2-inch zinc-type connection diameter.
- Can manage inlet pressure up to a maximum of 215 psi.
- Air flow rate can reach up to 3000 I/min.
Technical Specifications
| Specification | Value |
|---|---|
| Port Size | 1/2" Zinc Type |
| Filter Element | 5 |
| Max. Inlet Pressure | 215 psi |
| Max. Outlet Pressure | 7-150 psi |
| Max. Flow Rate | 3000 I/min |
| Operating Temperature Range | 5°C - 6°C |
| Drain Capacity | 80 ml |
| Oil Capacity | 125 ml |
