Ayder E1611 Plastic Shoe Cabinet Mechanism 1 Set

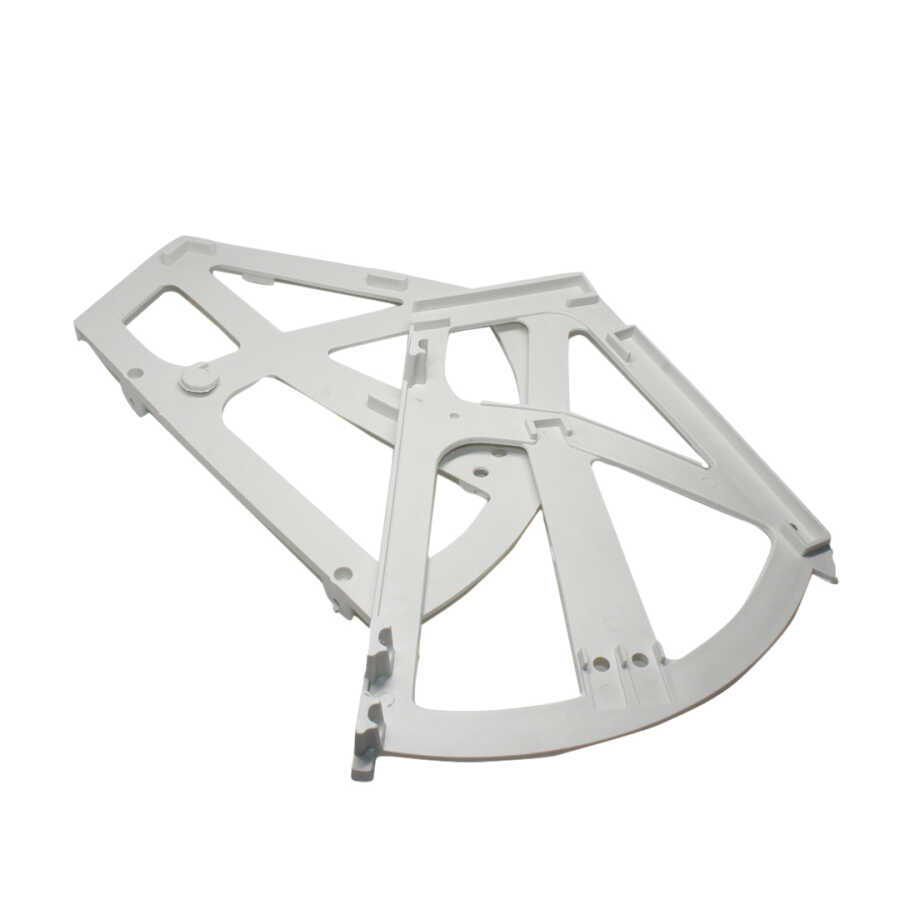

Ayder E1611 Plastic Shoe Cabinet Mechanism with Ball Bearings (1 Set / Left-Right)

The Ayder E1611 Plastic Shoe Cabinet Mechanism with Ball Bearings is a durable fitting designed for tilt-out shoe cabinets, providing maximum storage efficiency in compact spaces. Its precision ball bearing system ensures smooth, quiet, and vibration-free operation every time the cabinet is opened or closed. Manufactured from high-quality, impact-resistant engineering plastic, it offers excellent durability and long service life.

Technical Dimensions & Installation Details

Installation Information

• The cabinet must have a minimum internal depth of 240 mm to allow the door to tilt fully and accommodate shoes comfortably.
• 12 mm MDF or melamine-faced chipboard is recommended for the internal shelves and back panel.

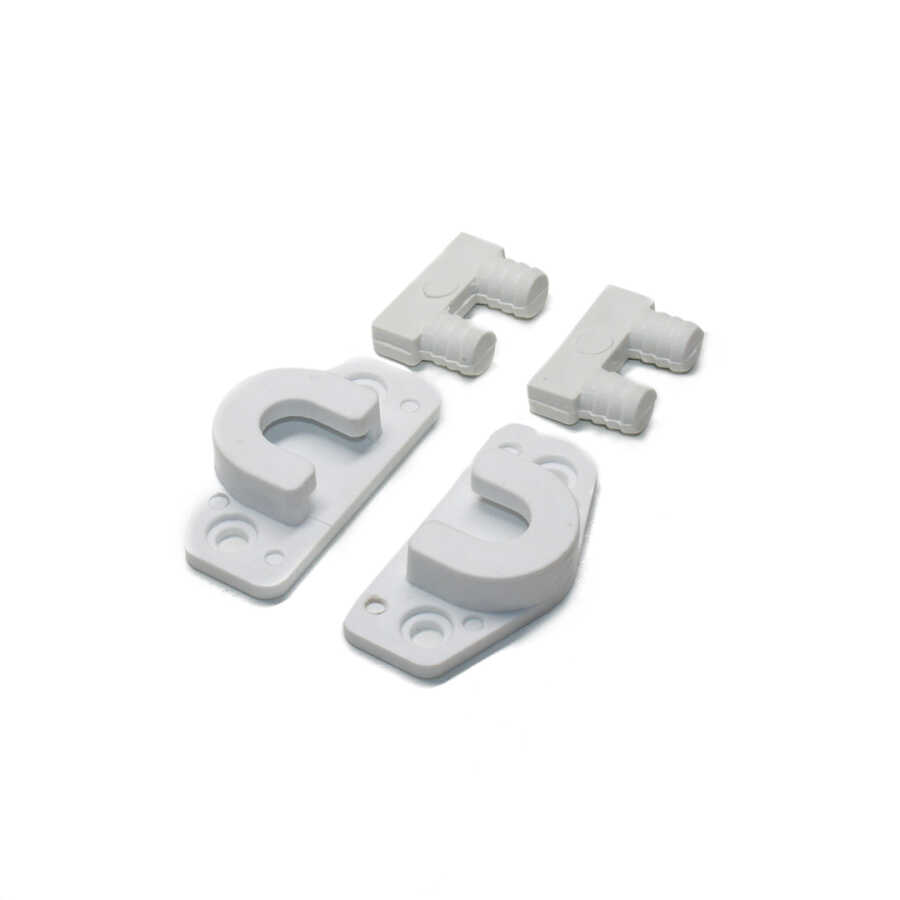

• The center of the main pivot bearing should be positioned 50 mm from the cabinet's front edge and 50 mm above the cabinet floor.
• The left and right mechanisms require a combined installation clearance of 30 mm. When cutting the wooden shelves, simply subtract 30 mm from the cabinet's internal width.

Product Features

• Precision ball bearing system provides exceptionally smooth and quiet operation.
• Lower friction compared to conventional plastic pivot mechanisms.
• Manufactured from premium impact-resistant engineering plastic.
• Pre-drilled mounting holes ensure quick and easy installation.
• Double-tier design allows two levels of shoe storage behind a single tilt-out door.
• Space-saving solution ideal for compact entryways and narrow cabinets.
• Suitable for both new cabinet manufacturing and replacement of worn mechanisms.

Applications

• Tilt-out shoe cabinets
• Hallway and entryway furniture
• Furniture manufacturing
• Furniture repair and renovation projects
• Residential and commercial storage solutions

Package Contents

• 1 x Left Shoe Cabinet Mechanism
• 1 x Right Shoe Cabinet Mechanism

Note: The package includes only the left and right plastic mechanisms. Wooden shelves, cabinet body, and mounting screws are not included.
